Combination Eye/Face Wash and Shower with Hand and Foot Controls

Information

• Application: Combination eye/face wash and shower safety station. Eye/face wash is activated by flag handle or foot treadle and features two large FS-Plus™ spray-type outlet heads that deliver a flood of water for rinsing eyes and face.
• Shower Head: 245mm diameter orange ABS plastic with 20 GPM flow control.
• Shower Valve: 1” IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals. Furnished with stainless steel actuating arm and 737mm stainless steel pull rod.
• Spray Head Assembly: Two FS-Plus™ spray heads. Each head has a “flip top” dust cover, internal flow control and filter to remove impurities from water flow.

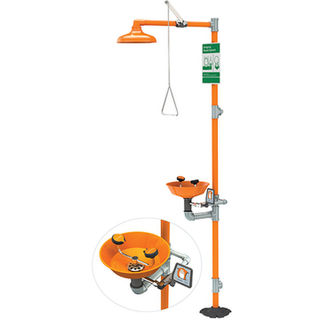

• Eye/Face Wash Bowl: 298mm diameter orange ABS plastic bowl.
• Eye/Face Wash Valve: 1/2” IPS chrome plated brass stay-open ball valve. Valve is US-made with chrome plated brass ball and PTFE seals. Valve is activated by flag handle or foot treadle. Unit remains in operation until handle is returned to closed position.
• Pipe and Fittings: Schedule 40 galvanized steel. Furnished with orange polyethylene pipe covers for high visibility and corrosion resistance. Orange powder coated finish on pipe and fittings.
• Supply: 1-1/4” NPT female top or side inlet.
• Waste: 1-1/4” NPT female outlet.
• Sign: ANSI-compliant identification sign.
• Quality Assurance: Valve and spray head assemblies are factory assembled and water tested prior to shipment.

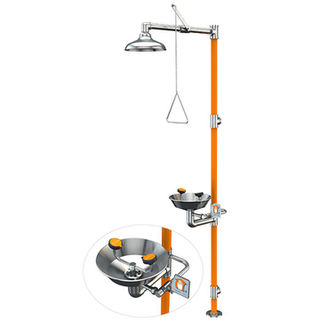

• Optional: Stainless Steel Bowl – Diameter: 283mm (Code: G100-008R)
